Order Number : 5000721 Rod
Vessel       : Beneteau Oceanis 35

Deposit
Recv'd
Measurements
Complete
Layouts
Requested
Layouts
Posted
Waiting for
Approval
Layouts
Approved
Order in
Production
Order
Completed
Customer
Advised
Order
Shipped
XXXXX











Special Shipping Instructions : None

Sail as Quoted to Customer:


Lazy bag - sunbrella

Performance Mainsail
2 Reefs + 1 Cunningham + Numbers and Logo + 2 ply
4 Full Battens Pockets
4 Nylon Batten Holders Included
Draft Stripe, Telltails, Triple Stitched
Sailbag
Aluminum Headboard, Leech line, Cam Cleat
Radial Patches Head, Clew and Tack
Sail Slides or slugs included
Full Standard Roach 1.10 (110%)
Sail Area : 27.50m2

7.88 Contender Pro Warp Tech- Tri Radial


Performance Genoa Furling + Numbers and Logo + 2 ply
Sunbrella U\V Protection and Foam Luff
Luff Tape for Furler
Telltails, Draft Stripe
Radial Patches Head, Clew and Tack
Leech Line and Foot line with Cam Cleats
Triple Stitch, Sail Bag
Sail Area : 26.72m2

7.88 Contender Pro Warp Tech - Tri Radial


Asymmetric Spinnakers
Full Radial Cut
I:12.44 m; J:4.29 m
Sail Area Sq Meters: 81.65m2

Contender Maxlite 150


Sock




How to Use This Web Based Order Form



Customer Information

=== CUSTOMER BILLING INFORMATION ===


Transaction ID: 47L58505UE8114321
Roderick Aitken
40 Waterview Road
Stanley Point
Auckland 0624
New Zealand


Phone :
E-Mail : Rod.Aitken63@icloud.com



==== CUSTOMER SHIPPING INFORMATION ===


Roderick Aitken
40 Waterview Road
Stanley Point
Auckland 0624
New Zealand


Quote Number       :316634063.TXT
ID                 :132317021.TXT



Sail Specifications

x
x





 - Mainsail -

5000721 Rod


M0

Sail Layout

Layout v3 8.88


M1

Tack Cut Back (Aft face of Mast to center of tack Pin - A)

50mm

Press Ring type

HELP

M2

Tack Cut Up (Top of Boom to Center of tack Pin - B)

45mm

Press Ring type

HELP

M3

Clew Cut Up (Top of Boom to Center of Tack Pin - X)

Loose Footed

HELP

M4

Clew type (slug, outhaul car or ring with strap)

“O” ring with 1,500mm long Velcro strap wraps around the boom 3 times

HELP

M5

Sunbrella clew cover for Furling Mains

na

HELP

M6

Other Offsets


HELP

M7

Headboard

Yes

HELP

M8

Leech Line

yes


M9

Foot Line

No


M10

Tack Ring Type

Press Ring

HELP

M11

Tack angle

See leech

HELP

M12

Jack Line

No

HELP

M13

Mast Bend (Luff Round)

Std

HELP

M14

Fractional Rig (Yes, No)

7/8th rig

HELP

M15

Mast - Keel or Deck Stepped?

Deck


M16

Number of Reefs

2  Reefs

1st Reef 1,450mm high above boom



2nd reef 2,900mm high above boom

HELP

M17

Intermediate Reefing Diamond Eyes (Yes or No)

No

HELP

M18

Foot Reefing Grommets (next to boom)

N/A

HELP

M19

Reefing Ring Type

Luff: Floppy Ring with 50mm between the rings

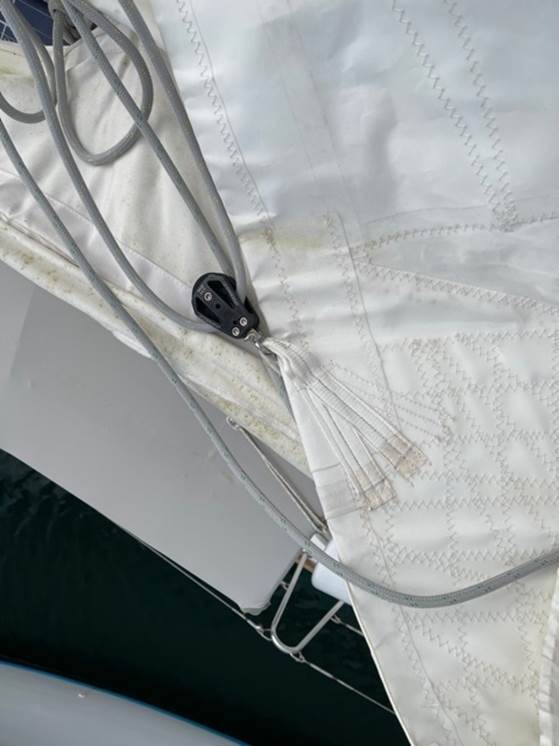

Leech: Webbing as with attached photo to accept shackled on block at aft end

HELP

M20

Luff Length (Max Hoist - P)

12,140mm. Measured top Boom to underside Black Band (max hoist, P)
  Max

(
12.01m Net Finished size day of Delivery)

HELP

M21

Foot Length (Max Foot - E)

3,980mm. Measured back of Mast to inside Boom Black Band (Max foot, E)
  Max

(
3.94m Net Finished size day of Delivery)

HELP

M22

Leech Length (straight line head to clew)

12,450mm Max measured Leach, from underside Mast Black Band to Inside Boom Black Band with boom strapped into lowest boom sailing position to ensure the boom clears fixed mainsheet cockpit arch and cockpit bimini.



 Sailmaker
2 ply on whole leech

HELP

M23

Bimini to Clear (yes or no)

N/A

HELP

M24

Foot Round

Sailmaker


M25

Aspect Ratio

Sailmaker

HELP

M26

Vessel Backstay Measurement

4,700mm measured

HELP

M27

Luff Slides (Part Number)

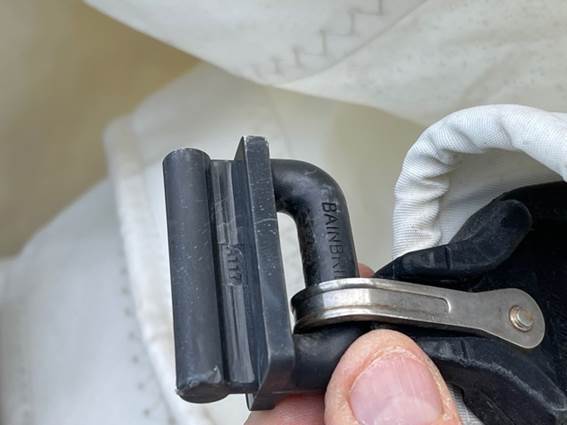

A014 – for intermediate sliders

A117 – for full length battens sliders

See photos attached below

HELP

M28

Foot Slides (Part Number)

Loose Footed

HELP

M29

Roach Type

Cruise

HELP

M30

Roach Factor

1.1

HELP

M31

MGM

Sailmaker

HELP

M32

MGU

Sailmaker

HELP

M33

Batten Type (Partial or Full)

4 Full

HELP

M34

Include Battens

N/A


M35

Install Nylon Batten Holders

Yes

HELP

M36

Intermediate Sliders

Yes

2

HELP

M37

Cloth Weight

7.88 Contender Pro Warp Tech- Tri Radial


M38

Cut Type

Tri Radial


M39

Sail Area

N/A


M40

Cunningham

Yes,Press Ring Type

HELP

M41

Telltails

Yes

HELP

M42

Triple Stitch

Yes


M43

Sail Logo and Color(red, blue or black)

YES, Beneteau, Black

HELP

M44

Sail Logo Artwork

YES


M45

Sail Numbers and Color

YES
Numbers= 9825

Black

HELP

M46

Draft Stripe and Color(red, blue or black)

Yes Black

HELP

M47

Overhead Leech Line

No


M48

Specialty Sail

No

HELP

M49

Boom Cover

No

HELP

M50

Lazy Bag

Yes –

Sunbrella 4684 Slate.

Measurements as follows


Layout v2

HELP

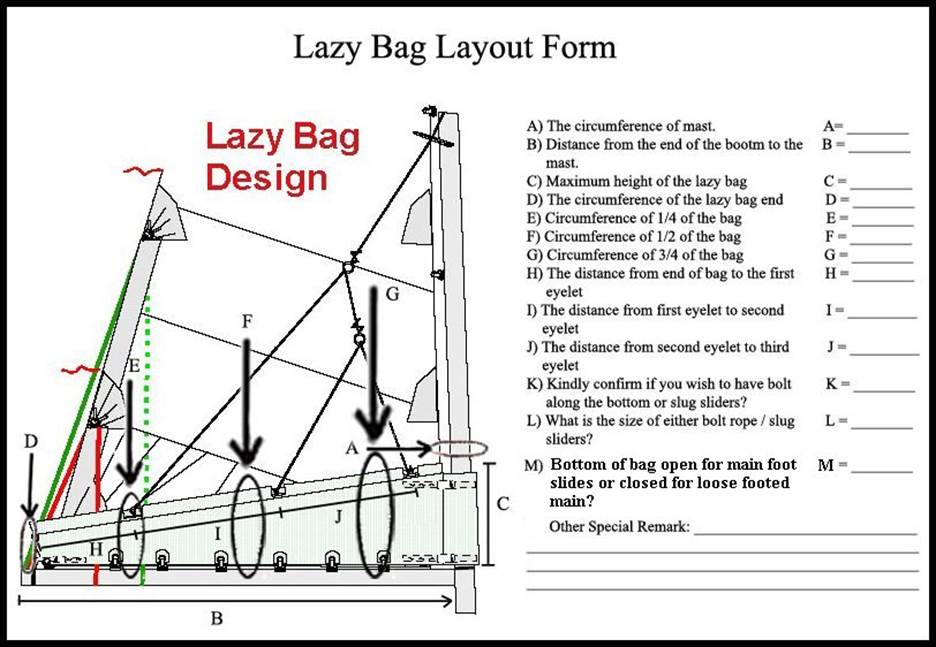

Lazy Bag Dimensions measured with existing sail:

A = 480mm

B = 4,160mm = Boom Length. (Max foot length, E to inside Boom Black Band is 3,980mm)

C = 900mm

D = 850mm

E = 1,100mm

F = 1,300mm

G = 1,750mm

H = 200mm

I = 1,600mm

J = 1,600mm

K = Bolt along the bottom from in-board end until last 1400mm, then to have Slug Sliders to allow reefing lines to attach around the end of the boom

L = Slot width = 6.5mm and internal cavity circa 25mm wide. Bainbridge A117 type slug slider will suit as is same as for Mast track sliders.

M = Closed bag with bolt to suit Loose Footed Main, but Open with slides only for the last 1,400mm to enable reef lines to pass around the boom








 - Headsail -

5000721 Rod


H0

Sail Layout

Layout v2 8.88


H1

Size of Headsail (110, 135, 150 etc.)"

Beneteau specification Sheets note sail as 110%, (I have fully dimensioned by pulling out on a calm day with no wind pressure. The existing sail fits very well on the boat)

HELP

H2

Luff Length, Max Hoist, B measurement

12,420mm measured max. No wind pressure, sail hoisted and sheeted in firm
webbing loop tip to webbing loop tip (Max)

(
12.29m Net Finished size day of delivery)

HELP

H3

Leech Length

11.80m  measured max. No wind pressure, sail  hoisted and sheeted in firm

sailmaker

2 ply on the leech

HELP

H4

Foot Length

4,800mm measured max No wind pressure, sail hoisted and sheeted in firm sailmaker

HELP

H5

Tack and Head Fittings

Webbing Loops


H6

Clew Type (Press ring or 0-Ring)

“O” Ring

HELP

H7

Leech Line

Yes


H8

Reefs for Hank on Sail (specify Qty of tiedowns)

No Manual Reefs


H9

Foot Line

Yes


H10

Track 1 (Tack to Genoa Track Beginning)

3,950mm max. Works well with measured Luff, Foot, Leach dimensions provided

HELP

H11

Track 2 (Tack to Genoa Track Ending)

5,200mm max. Works well with measured Luff, Foot, Leach dimensions provided

HELP

H12

Vessel "I" Measurement

12.44m

HELP

H13

Vessel "J" Measurement

4.29m

HELP

H14

Calculated Forestay Length

Sailmaker.


H15

Reef

N/A


H16

LP

See leech

HELP

H17

Color of Suncover

White - sunbrella

HELP

H18

Side of Sail for Suncover (port or Stbd)

Starboard


H19

Luff Tape Size (such as #6)

HL6 Tape #6 finished Size 5.5mm

HELP

H20

Furler Manufacturer

Facnor LS130 headsail furler


H21

Foam Luff

Yes

HELP

H22

Cut Type

Tri Radial


H23

Sail Area

Sailamker


H24

Telltails

Yes

HELP

H25

Telltail Window

No


H26

Triple Stitch

YES


H27

Logo

YES, Beneteau, Black

HELP

H28

Cloth Weight

7.88 Contender Pro Warp Tech - Tri Radial


H29

Sail Numbers and Color (red, blue or black)

YES
Numbers= 9825

Black

HELP

H30

Sheeting Stripe (red, blue, black)

No

HELP

H31

Draft Stripe Color  (red, blue or black)

YES

Black

HELP

H32

Clew Height off Deck

Sailmaker.

(475mm measured)

HELP

H33

Tack Height off Deck

420mm

HELP

H34

Luff tape starts
up from Tack

450mm

HELP

H35

Specialty Sail

No

HELP


Customer Note: All details we can check as sailmakers are based on accurate vessel I and J Measurements


HELP






 -  -

5000721 Rod


S0

Sail Layout

Layout v1


S1

Size of Headsail (110, 135, 150 etc.)"

81.65m2
Asymmetric Spinnakers


S2

Luff Length, Max Hoist, B measurement

sailmaker

13,900mm

Measured halyard hoist from block to masthead sheave

HELP

S3

Leech Length

sailmaker


S4

Foot Length

sailmaker


S5

Tack and Head Fittings

O-Rings


S6

Vessel "I" Measurement

12.44m

HELP

S7

Vessel "J" Measurement

4.29m

HELP

S8

Calculated Forestay Length

Sailamker


S9

Masthead or Fractional Spinnaker ?

Fractional


S10

Tack up for Code 0's

N/A


S11

Correct Size for A/Spin or S/Spin

N/A


S12

LP

N/A

HELP

S13

Cut Type

Full Radial


S14

U/V Cover

N/A


S15

Luff Type

Free


S16

Furler Name

None


S17

Sail Area

81.65m2


S18

Cloth Weight

Nylite 150


S19

Sail Colors

all Orange

HELP

S20

Sail Numbers and Color (red, blue or black)

No

HELP

S21

Sail Logo

No


S22

Sail Sock (White is std Color)

Yes


S23

Sail Sock Length

Sailmaker


S24

Wire Size

N/A


S25

Sail Sock Color

Black

HELP

S26

Specialty Sail


HELP

S27

Score


HELP


Customer Note: All details we can check as sailmakers are based on accurate vessel I and J Measurements


HELP



Full length sail battens, existing mainsail.

Intermediate Battens, existing mainsail





Leech reef lines existing mainsail attach with webbing to suit shackle on block as below. Luff reef points press ring type
